                This Diffuser uses Ultrasonic principle which can atomize the water and essential oil in the water tank, and produces a cool humid and fragrance mist.

Dimension:                         Approx 158 x 130 mm
Weight:                                Approx 477g x 477g
Power:                                 AC100-240V 50/60Hz DC24V 650m
Length of Cord:                 Approx 170cm
Power:                                 Approx 14W
Time Mode:                       1h / 3h / 6h / On
Tank Capacity:                   500ml
LED Light:                            6pcs
Material:                              PP/ABS
Accessory:                          AC Adapter and Manual
Working Frequency:       2.4MHz

                1. Position the Diffuser upright, pull vertically upwards to remove cover

                2. Connect AC adaptor power corn into the DC input jack at the base of the Diffuser.

                3. Pour water and essential oil into Diffuser. DO NOT fill in excess of “MAX” marking 500ml.

                DO NOT use boiling water. DO NOT fill when power is on. It is recommended to add 2-3 drops of

                Essential oil for each 100ml of water.

                4. Re-install cover. Spout is adjustable to guide diffuser into desired direction.

                5.Connect AC adaptor with power from wall socket

                6. Press start the atomizing working mode, select (1H/3H/6H/ON continuous) working mode.

                Diffuser will automatically shut down the atomizing at specified time.

                7. Press Mist is adjustable strong and weak. (one beep for strong mist, two beep for weak mist).

                8. Press to switch on LED light. Brightness is adjustable through the following cycle. (Bright –        Dim – Off)

                9. It’s recommend to drain water from tank and keep dry for extended idle period.

                10. When connect with the power, the original state of diffuser is still off.

                11. Misting operation with the power, the original state of diffuser is still off.
                Even press diffuser is also switch off automatic.

                Please check below to avoid malfunction of the unit.

  • It’s not allow to change, dismantle, or repair the unit if you are not the technician.

Please contact the selling department or you may now direct to the store online and message u.

  • Do not switch on power when the tank is empty.
  • Do not touch the atomizing piece.
  • Clean regularly as per Maintenance instruction to avoid malfunction.
  • Always unplug before maintenance.
  • For hygiene reasons, after use, pour away the remaining water from “DRAINAGE SIDE” of tank, and wipe with a clean dry cloth.
  • Essential oil can corrode in the event of spillage of contact, please wipe away with a soft cloth.
  • Only use the measuring cup to add into a water tank, do not fill water directly from the water pipe.
  • Do not let mist directly to the furniture, clothing, walls etc.
  • Keep away from direct sunshine heat sources and air conditioner or fans.
  • Always keep on stable plat surface do not put on carpet, duvet or unstable area.
  • Keep away from electronic equipment, such as TV and Audio equipment.
  • Wait 60 minutes before restart to avoid damage atomization piece.
  • Don’t use sparkling water, tap water and mineral water are available.
  • Never move product when it is working.
  • Do not touch any part of the product with wet hands.
  • Keep away from the child and pet, child is not allow to play without supervisor. This product is not suitable for the child and people who don’t know the product and have no experience.

If the cable is smoking, burning, unplug immediately.

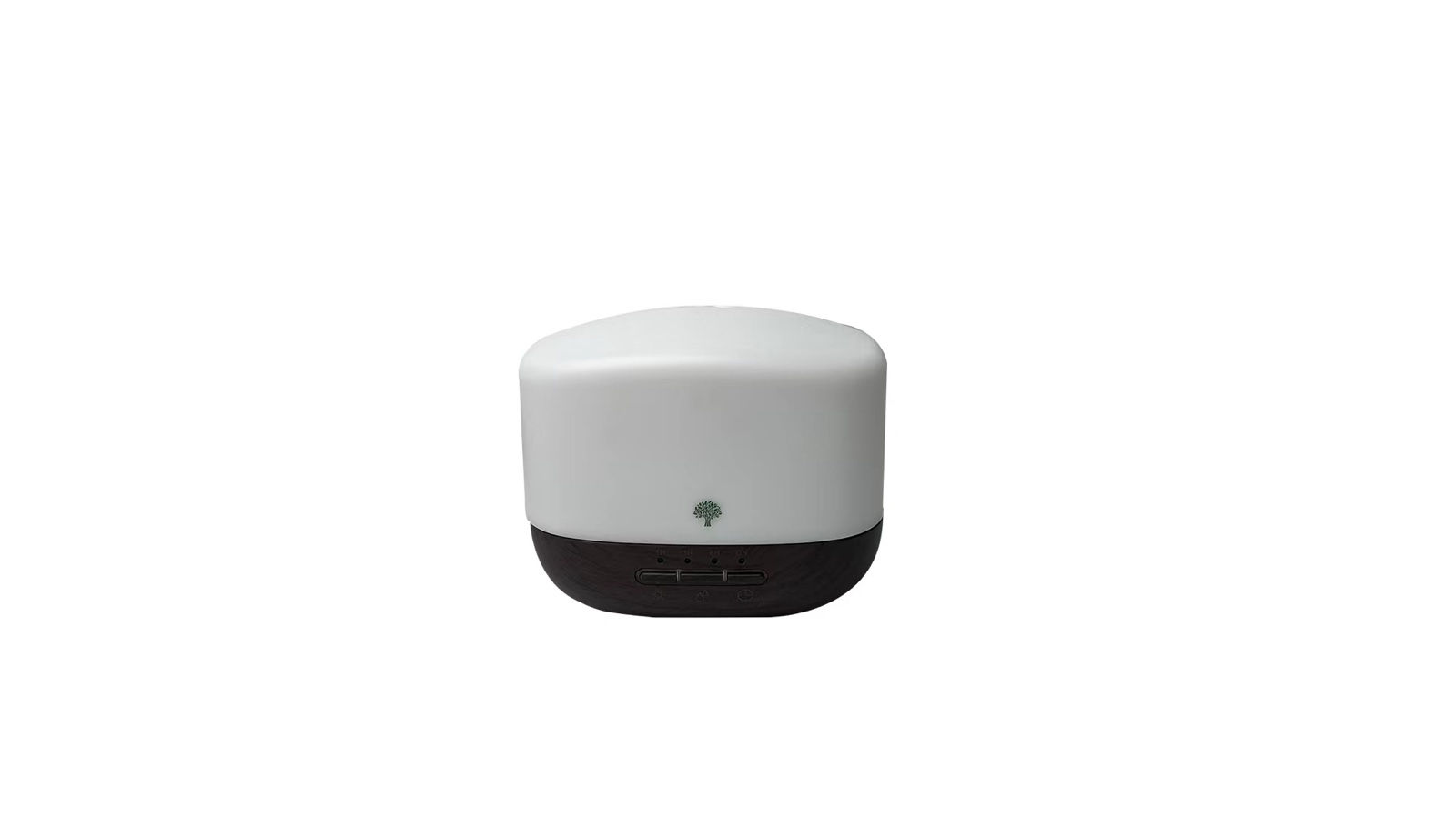

500ML Guiding LED Humidifier with Essential oil Ultrasonic Aromatherapy Diffuser

SKU: 51
